Ekahu Office Network Survey & Port Mapping

Tools Used: NetAlly Link-Live, AirCheck G3, EtherScope nXG

Overview

At Ekahu, we conducted a comprehensive site survey and port mapping project to ensure network reliability and optimal Wi-Fi performance. Using advanced NetAlly devices, we were able to efficiently map network ports, verify connectivity, and identify potential coverage gaps.

Process:

Site Survey:

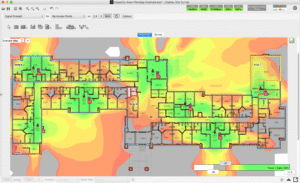

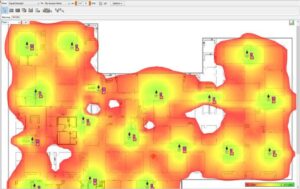

Conducted a full Wi-Fi site survey using NetAlly AirCheck G3 and EtherScope nXG.

Checked signal strength, channel usage, and interference across all areas.

Port Mapping:

Identified and verified each switch port using NetAlly Link-Live integration.

Documented port-to-device connections for accurate network records.

Detected any miswired or inactive ports for quick remediation.

Analysis & Reporting:

Compiled all data into a centralized Link-Live report.

Highlighted areas needing coverage improvement and ensured each device was correctly mapped.

Outcome

Complete visibility of the Ekahu network, including every AP and switch port.

Enhanced Wi-Fi performance and accurate network documentation for future troubleshooting.

Streamlined network management through verified port mapping and detailed reports.

Key Takeaways

Using advanced tools like NetAlly devices significantly reduces survey time and increases accuracy.

Accurate port mapping ensures easier maintenance and faster troubleshooting in the future.

Detailed site surveys help uncover hidden network issues before they impact operations
